Normal Crom
Normal round crome rod

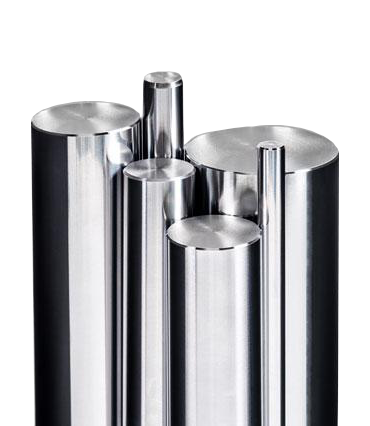

normal Romanian chrome; C45E (Ck45) hard chrome coated steel bars
Suitable for standard hydraulic applications, offered with excellent surface smoothness, optimized for rust resistance and competitive price
| BAC series General features | Steel bars with hard crome coating C45E (ck45) |
| Steel grade | C45E (EN 10083) |
| Dimensional range of inches | “8- “1/4 |
| tolerance | (According to the client’s request, h7 tolerance is possible) ISO f7 |
| Round | Dimensional tolerance /2 |
| Standard length | for ∅ <60mm:5600-6200mm- for ∅ <60mm:5800-7200mm- (According to the customer’s request, special lengths of all sizes are possible) |
| surface smoothness | (0.5-0.15um Statistical average)Ra max 0.20 um |
| Chrome layer thickness | 20mm:min 15um∅> 20mm:min 20um∅≤ |
| Hardness of the chrome layer | min. 900 HV(0.01) |
| Indeed during | 16mm:max. 0.3mm:1000mm∅ ≥ 16mm:max. 0.2mm:1000mm∅ < |
